How To 'Fit a PL259 Plug'

Tuesday, 28 May 2019  |  Andy

Simple step by step instructions on how to fit a PL259 plug to coaxial cable.

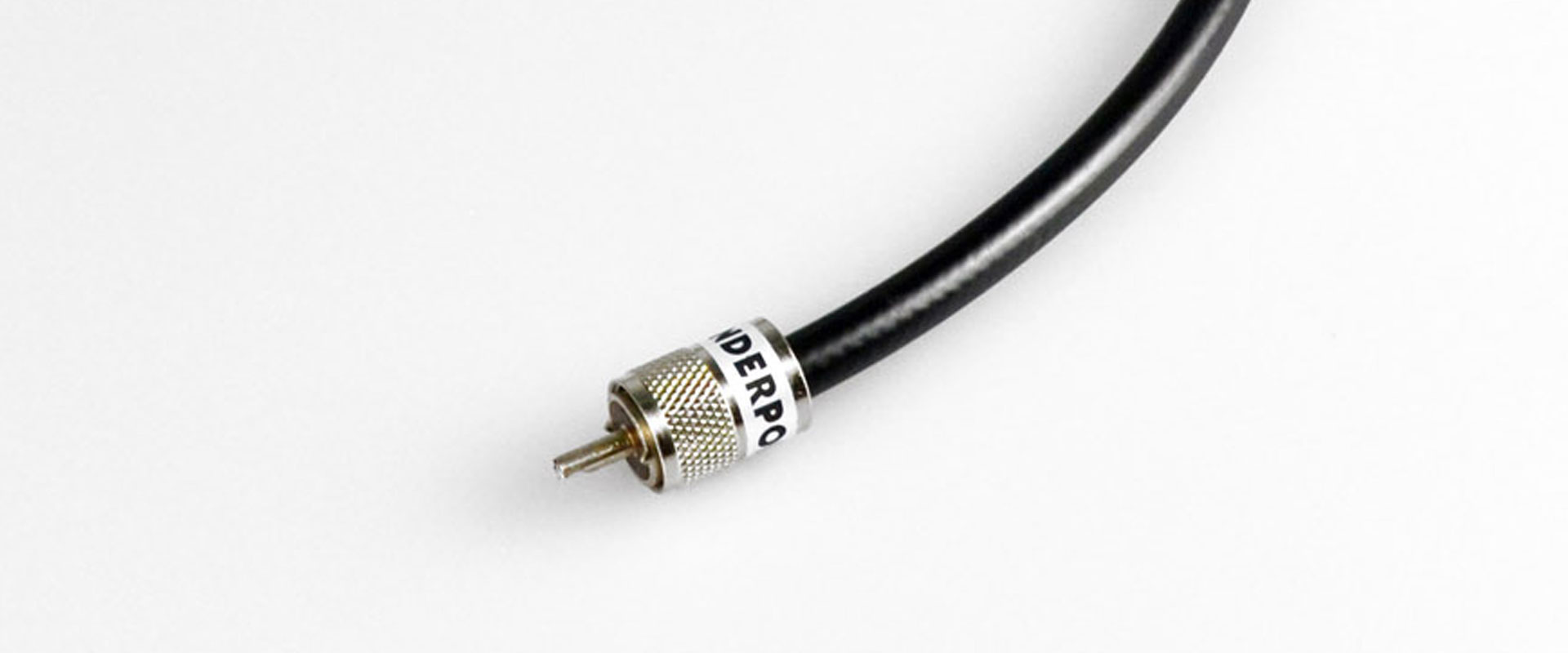

How to fit a pl259 plug

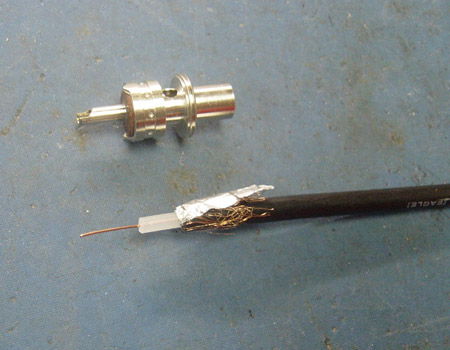

Step 1) Strip back the coax and pull back braid over cable


Fitting a pl259 Step 1

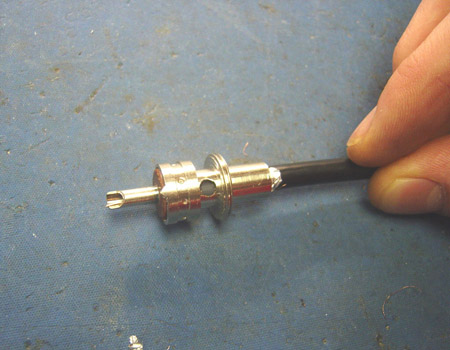

Step 2) Put outer part of plug onto cable then screw inner part over braid


Fitting a pl259 step 2

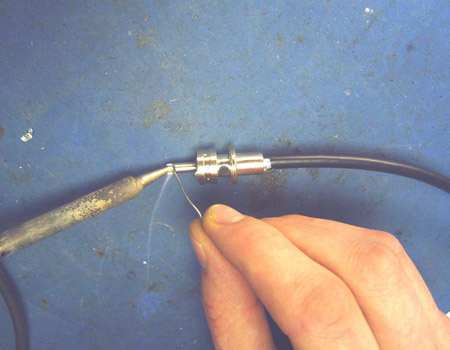

Step 3) Solder end of the pin and trim excess wire


Fitting a pl259 step 3

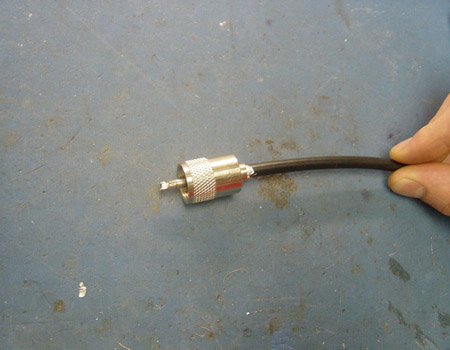

Step 4) It should look like this!


Fitting a pl259 step 4
