Sirio Inglass LTE & WLAN Wi-Fi Antenna

Main Features

• On-glass adhesive mounting
• Boost your WIFI signal
• Unity-gain, Omnidirectional
• Dual-band
• For E-GSM 900 & 1

Electrical Data:

• Type: On-glass indoor
• Radiation: Omnidirectional
• Polarization: Linear Vertical or Horizontal
• Frequency range: 800-960 MHz, 1710-2700 MHz, 3.3-3.8GHz & 5.17-5.875GHz
• Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz, ISM-915MHz, WiFi-2.4GHz, WiFi-5GHz, WiMAX
• Gain: 0 dBd – 2.1 dBi all bands
• Max Power: 10 Watts from 800 to 2700 MHz / 6 Watts from 3.3 to 3.8 GHz
• 5 Watts from 5.15 to 5.875 GHz
• Cable lenght / type: 3 m (9.84 ft) / RG174
• Connector: SMA-male, Other type on request

Mechanical Data:

• Materials: Copper, Thermoplastic UV stabilized, PCB
• Dimensions (approx): 55 x 77 x 10 mm / 0.18 x 0.25 x 0.03 ft
• Weight (approx): 70 gr / 0.15 lb
• Mounting type: On-Glass, Adhesive Mount

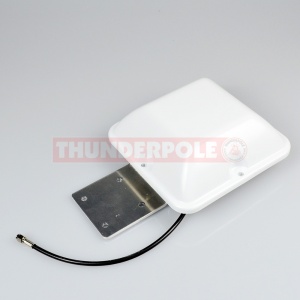

Sirio Inglass | On-Glass Indoor Wifi Antenna

The 'Sirio Inglass' is a WiFi indoor antenna conceived for inside on-glass installation. IN-GLASS W-LAN is supplied with a 3M VHB adhesive tape for a permanent fitting. It is ideal for WiFi connections indoors when the signal is low, also for installation in vehicles when Wifi connection is needed on the move.
