Thunderpole G5RV  Antenna - Half
 Thunderpole G5RV  Antenna - HalfThunderpole G5RV  Antenna - Half

Thunderpole G5RV Antenna - Half

Ref:  32012
Band:  Multi
Frequency RX:  7 - 30 MHz

  (1 Review)
Price:  £34.99

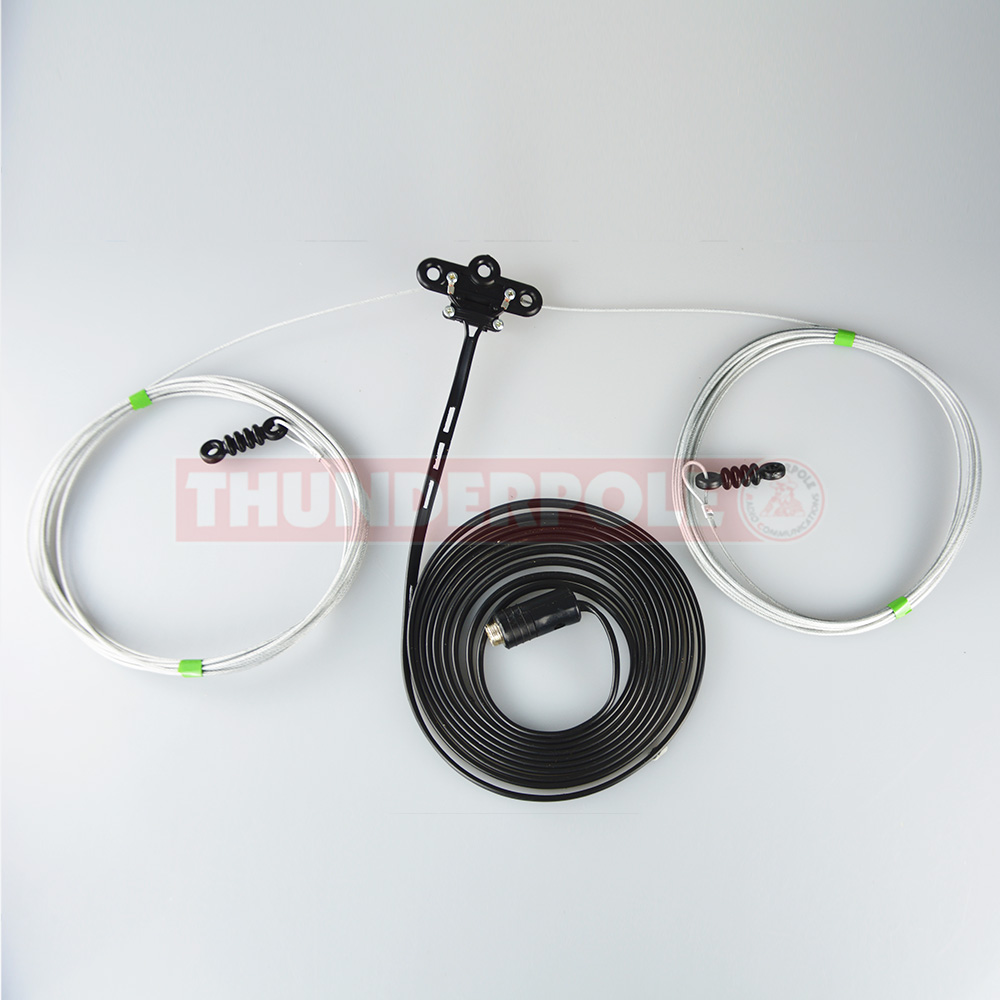

Thunderpole G5RV Half | 7 - 30MHz Inverted V Antenna

The G5RV, with its special feeder arrangement, is a multi-band centre-fed antenna capable of very efficient operation on all HF bands from 7 to 30MHz.

It is specifically designed with dimensions which allow it to be installed in gardens which accommodate a reasonably straight run of about 16 metres (52 ft.) However, because the most useful radiation from a horizontal or inverted-V resonant antenna takes place from the centre two-thirds of its total length, up to one-sixth of this total length at each end of the antenna may be dropped vertically, semi-vertically, or bent at some convenient angle to the main body of the antenna without significant loss of effective radiation efficiency.

The superior half size G5RV comes fully assembled and ready to go, complete with instruction sheet.


Share a photo of your Thunderpole product and appear in our showcase. Make sure to tag your image with either @thunderpole_uk or #thunderpole on Instagram.


Ratings & Reviews

Average Rating (1 Review):
Write a Review and share your opinions!

G5RV Antenna - Half
Thursday, 18 July 2019  |

Great little antenna nice clean signals good swr, my only reason for not giving it 5 stars was the connections on the top were a little weak and needed some TLC

Was this helpful to you?  Yes  /  No

3 of 3 people found this review helpful.


Main Features

  • Power Handling: 500 Watts
  • Frequency: 7-30 MHz
  • Bands: 40 - 10 Metres
  • Full Length: 52 feet (2 x 26')
  • Impedance: 50 Ohms
  • Connection: SO239
  • Made in Great Britain
