Kenwood NX-1200 E3 / NX-1300 E3

Main Features

DIGITAL – NXDN

• FDMA – Very narrow 6.25 kHz & narrow
• 12.5 kHz bandwidths
• Type-D Trunking (Single site)
• NXDN Conventional Operation
• Site Roaming
• Digital / Analogue Mixed mode
• Group / Individual Call
• Status / Short data, Paging Call
• Remote Stun / Kill, Monitor, Check & Control
• Digital Bit Scrambler
• Late Entry
• Over-the-Air Alias (OAA)

DIGITAL – DMR

• TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
• DMR Tier II Conventional Operation
• Site Roaming
• DMR Auto Slot Select
• Dual Slot Direct Mode
• Digital / Analogue Mixed mode
• Call Interruption
• Group / Individual Call
• Status / Short data, Paging Call
• Remote Stun / Kill, Monitor, Check & Control
• Enhanced Encryption (ARC4)
• Digital Bit Scrambler
• Late Entry
• Over-the-Air Alias (OAA)

ANALOGUE – FM

• FM Conventional Operation
• FleetSync: PTT ID, Stun/Revive, Talk back, Selcall
•  5-Tone Signalling (EEA, ZVEI, CCIR, ZVEI-2, EIA or KENWOOD)
• MDC1200: PTT ID, Radio Inhibit/Uninhibit, Radio check, Emergency
• QT / DQT, DTMF, 2-tone
• Built-in Programmable Voice Inversion Scrambler (per channel)
•  Built-in Compander (per channel)

Business Radio Licence

The Kenwood NX-1200 E3 / NX-1300 E3 requires a Business radio licence. If you use a PMR radio system for your business then you will need a licence from Ofcom.
Click here to 'Apply online'

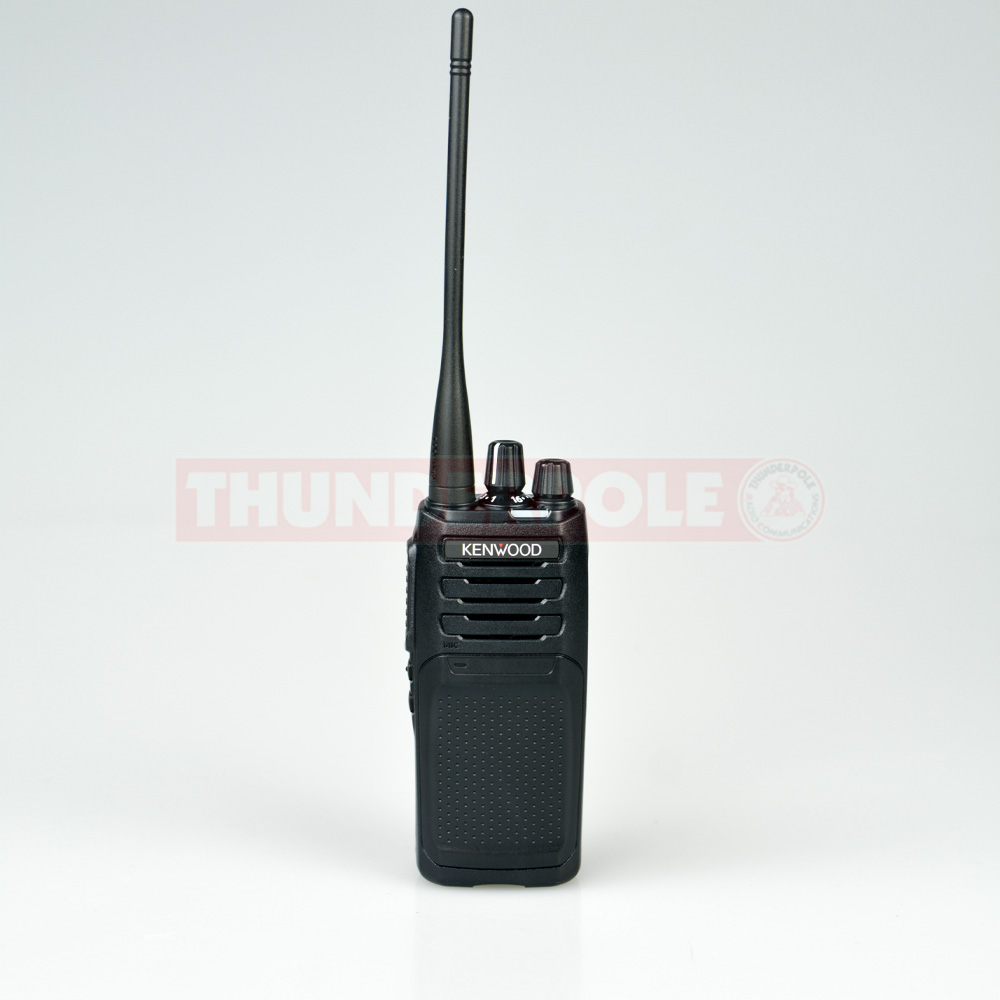

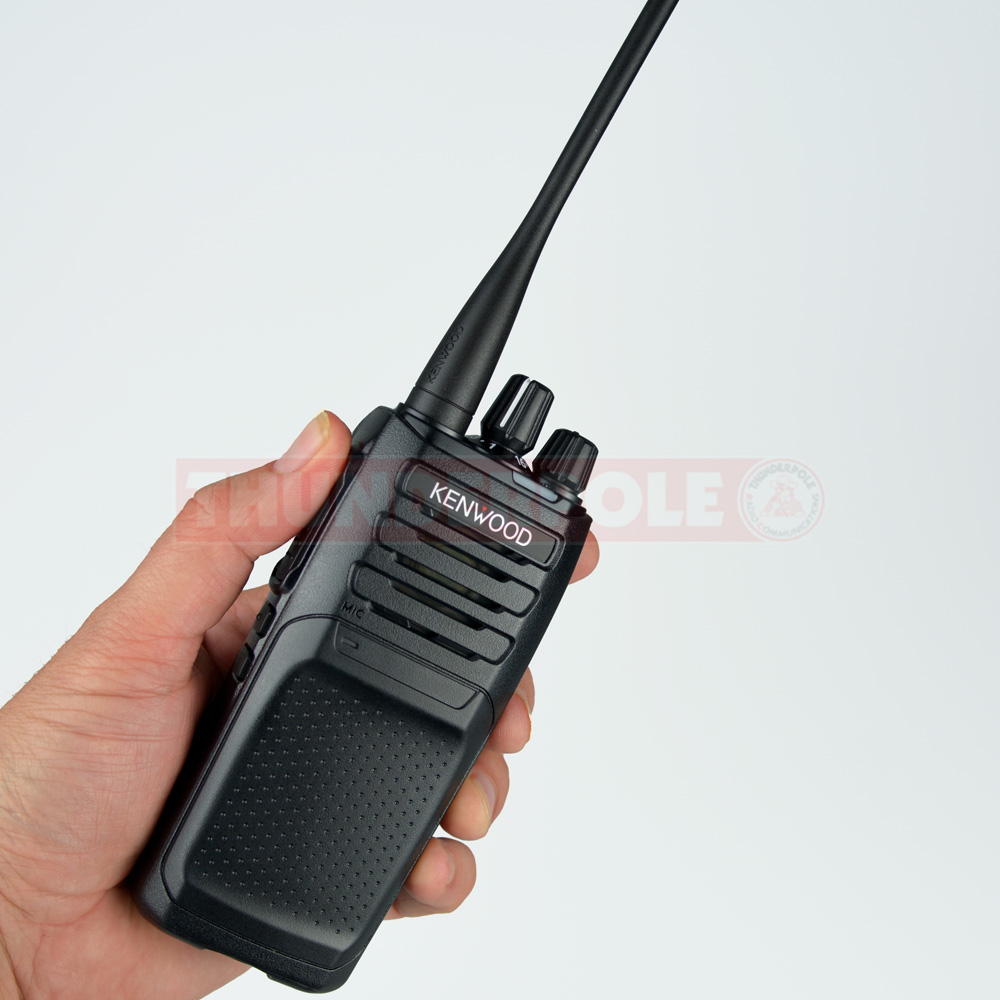

Kenwood NX-1200 E3 / NX-1300 E3

If you are thinking of harnessing the latest digital protocols – DMR or NXDN – to enhance business efficiency, the NX-1200/1300 has you covered. Our entry level solution offers the widest selection of two-way radios for everyday use. The models also include basic and keypad variations, with or without a high-contrast backlit LCD.

Other features include a 7-colour LED indicator and the popular KENWOOD 2-pin audio accessory connector. Mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital.

Available in FM Analogue + digital DMR and FM Analogue + digital NXDN versions

Features

• Wide variations, “One” platform: To meet various demands — NXDN or DMR digital CAI (Common Air Interface) models are available
• Choose from direct & intuitive LCD with full & standard keypad or basic versions
• Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
• Large 7-Colour LED indicator on the top panel
• Selective Power-on LED
• Selective Call Alert LED
• Battery Level Indication
• Multi-status function indication
• RF output power 5W both on VHF/UHF
• Wide band UHF 70MHz coverage
• Renowned KENWOOD Audio Quality: TX/RX audio profile with optimisable digital processor
• Audio Equaliser: Flat, High, Low
• Auto Gain Control: On, High, Low, Off
• Noise Suppressor
• Microphone type settings
• Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
• VOX & PTT – triggered Semi- VOX, Voice-operated TX
• Emergency Function: Customisable Emergency Profile
• Lone Worker
• Max / Min Volume setting & Volume control
• Voice Announcement
• Remote Stun / Kill / Check
• Electronic Serial Number (ESN)
• MIL-STD-810 C/D/E/F/G
• IP67, IP54 and IP55
