SALE
Sirio Gain Master



Sirio Gain Master

Ref:  09001
Delivery:  Free Delivery in UK Mainland

Price:  £129.99
was:  £149.99
Save:  £20.00
(Inc. 20% VAT)
  Main Features:

Power Handling:
1000w (Short)
500 Watts (Continuous)

Length:
7.36m (with Bracket)

Radial Length: 1.40m

Impedance: 50 Ohms

Frequency: 25.5-30MHz

SWR: 1:1.1

Gain:
1 - 2 dB higher than 5/8 λ
Weight: 3kg (approx.)
Connection: UHF-female








  Sirio Gain Master | CB 26-28 MHz AM/FM Homebase Antenna

The Sirio Gain-Master is a new high tech fibreglass base station antenna for CB and 10m amateur band.

Completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth. Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.

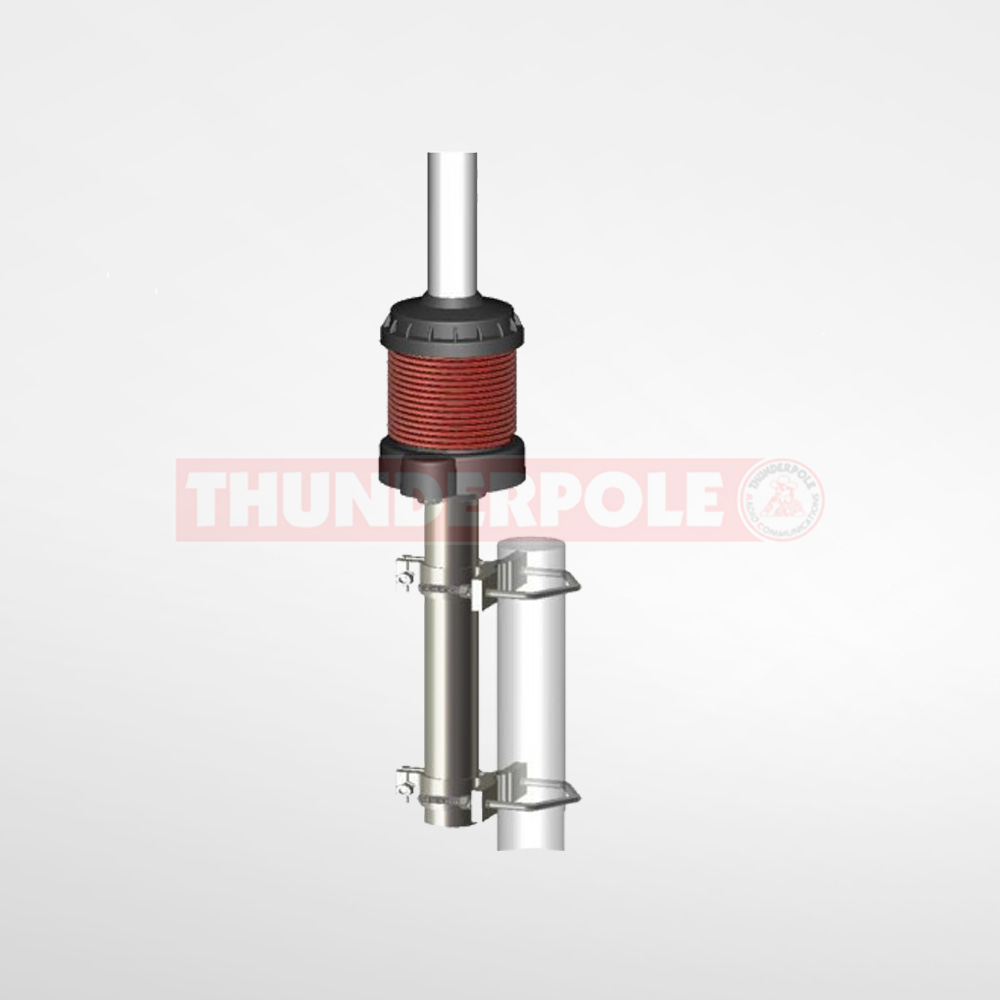

The new design of the radiant element (Patent Pending) works like a central fed dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary. The coaxial coil at the bottom works like an RF-choke for the optimum decoupling from mast and feeding line. Made of telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.

Check out some reviews here... Gain-master Reviews






. Sirio Gain-Master™ has the highest available gain for 5/8λ antenna due to its perfectly horizontal angle of radiation.
This improves performance, at least 1-2dB, corresponding to
26%-58% more gain



This arrangement allowed the Gain Master to increase the maximum gain of 0.6dB in comparison to a conventional 5/8? antenna with equal length.
